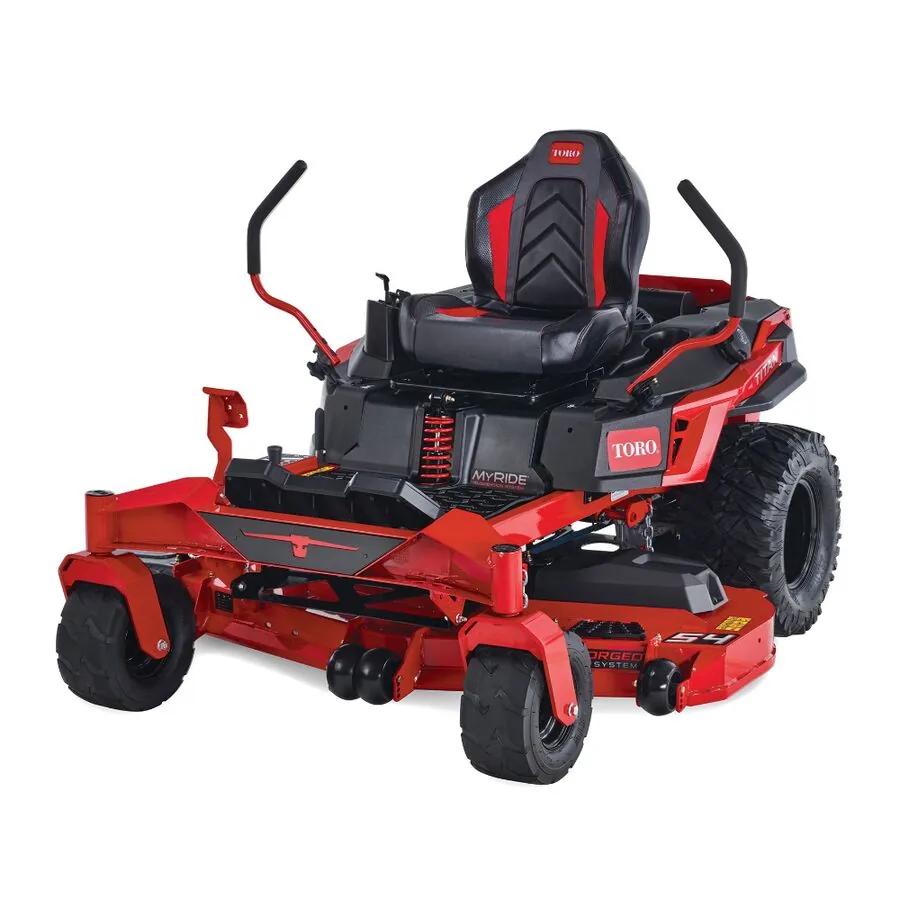

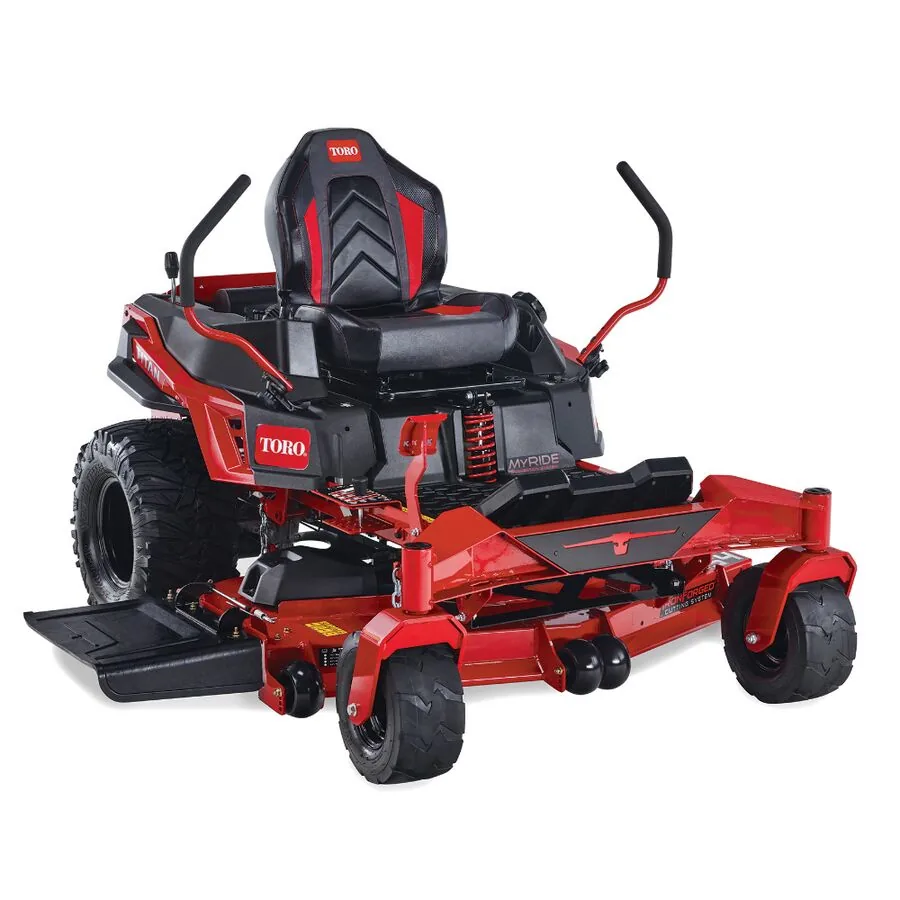

Toro 76511 TITAN Z-Turn Mower w/ MYRIDE 26hp Kohler 747cc V-Twin w/54″ Fabricated Deck

- Built with a commercial-style I-beam front end for extreme durability and strength.
- Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
- Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way.
- Massive 22″ rear tires feature aggressive treads meant to bring Mother Nature to her knees.
- Treaded front casters dial the attitude up to 11, making this one mighty-looking machine.
- The gaming-style seat gives you big time support exactly where you need it.
- The rubber discharge chute flexes without busting up your landscaping or your ride.
- Its gigantic engine delivers mega power so you can absolutely dominate nature’s worst.
- A cast aluminum stomp pad helps you scrape your boots, get your grip, step up and let ‘er rip.
- The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
- Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more

Specifications

Air Filter Kohler Pro Cleaner Air Filter

Anti Scalp Wheels 4 Standard

Armrests Optional

Blade Design 0.164 in. / 0.417 cm Steel with Blade Stiffner

Blade Tip Speed 18,908 ft/min / 5,763 m/min

Box Dimensions 82.0 in. x 63.0 in. x 52.0 in. / 208.3 cm x 160.0 cm x 132.0 cm

CARB Compliant Not CARB Compliant

Carrier Frame 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel

Caster Tires 13 in. x 6.5 in. – 6 in. (33 x 16.5 cm – 15.2 cm) Pneumatic

Clutch Electromagnetic

Comfort Platform MyRIDE® Suspension System

Cooling System Air Cooled

Crankshaft 1″ (25 mm) w/Steel Protector

Cup Holder Standard

Deck Design 10-Gauge Steel IronForged® with Fully Weld Grade 50 Steel Bumper

Deck Material 10 Gauge Steel

Deck Size 54 in / 137 cm

Discharge Chute Rubber

Drive System Hydrostatic

Drive Tires 22 in. x 11 in. (55.8 cm x 27.9 cm)

Drive Type Rear-Wheel Drive

Engine Kohler KT745 26 hp 747cc

Engine Brand Kohler

Engine Displacement (cc) 747 cc

Engine Horsepower 26.0 hp

Engine Power (kW) 19.3 kW

Foot Operated Height of Cut Standard

Forward Ground/Transport Speed Up to 8.5 mph / 13.6 kph

Forward Mowing Speed Up to 8.5 mph / 13.6 kph

Front Bumper Reinforced Bull-Nose

Fuel Capacity 5 gal. / 18.9 L / 20 Qt.

Fuel Type Gasoline

Height of Cut 1.5 – 5.0 in. / 3.8 – 12.7 cm

Hitch Bracket Standard

Number of Blades 3

Product Type TITAN MyRide

Product Use Residential

Recommended Oil Type 10W-30

Roll-Over Protection System (ROPS) Optional

Seat 20″ Gaming Style

Spindle Housing Cast-Aluminum

Start Type Electric

Steering Controls Twin Lever

Steering Dampeners Standard Dampers

Terrain Type Flat with Obstacles

Tires 13 in. x 6.5 in. (33 x 16.5 cm) Front, 22 in. x 11 in. (55.8 cm x 27.9 cm) Rear

Transmission Dual hydrostatic HG ZT2800

Weight 789 lbs / 357.9 kg

Disclaimer

*26 HP gross (747 cc) at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kohler®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.†See retailer for warranty details.‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.

Accessory List (Not Included)

Model/Part # Description

136-7489 Recycler Mulch Kit

79348 Powered Bagger
