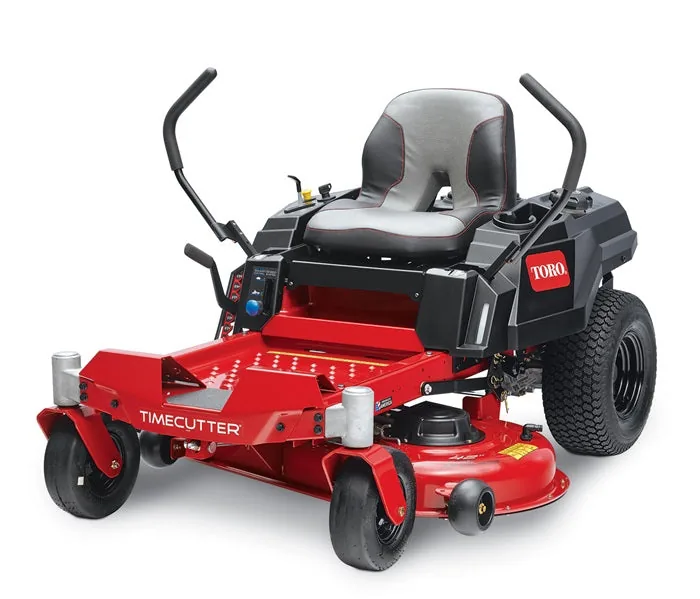

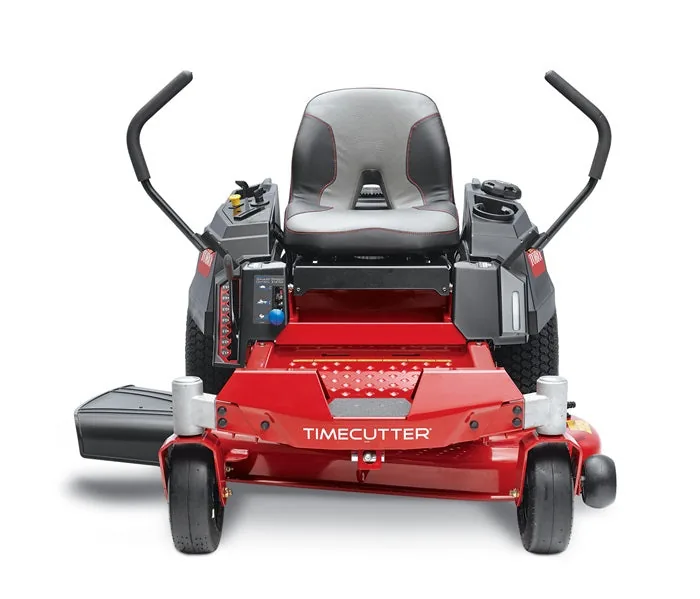

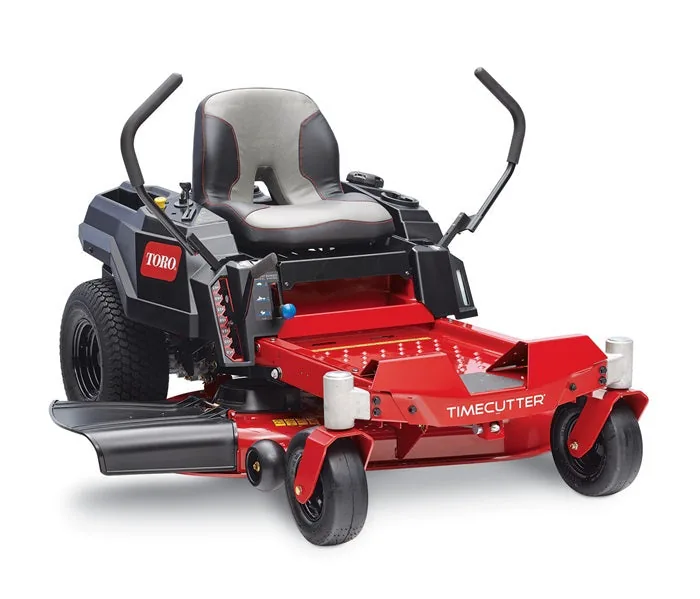

Toro 77401 TIMECUTTER Z-Turn Mower 22hp Briggs & Stratton V-Twin Engine w/42″ Stamped Deck

Tackle everything on your “Honey-Do” list and still make it in time for all the summer fun with Toro’s 42″ TimeCutter. The mower’s compact design makes for easy storage, and features like a step-through front end, built-in cupholder and storage cubby give you the ultimate in convenience. It’s also a snap to control with Toro’s Smart Speed® Technology, which adjusts to your pace for easy maneuverability. Pinpoint quality cuts and zero-turn mowing are just two pro commercial contractor features that put Toro’s cutting-edge technology and world-class craftmanship into the hands of homeowners. And you can rest easy knowing Toro stands behind its mowers with a 3-year unlimited hour residential warranty, plus 3-year, 300-hour commercial engine warranty. And as a Toro owner, you’ll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

- Cup Holder – Stay cool and hydrated with a built-in cup holder.
- Wide Rear Tires – Wide tires to reduce rutting in soft ground.
- Pro DNA – Commercial DNA courses through these machines’ veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.
- Step-Through Front End – Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
- Toolless Oil Change – Spend less time maintaining your mower with toolless oil change and filter.
- Handcrafted Seat – Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
- Storage Cubby – Now there’s a convenient and safe space in your under-seat cubby to store important items.
- Pick Your Pace – Take control over your mowing speed, while never sacrificing blade tip speed with Smart Speed® Technology.
- Download the MyToro App from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more.

Specifications

Blade Tip Speed 17,810 ft/min / 5,428 m/min

Box Dimensions 82 in. x 49 in. x 35 in. / 208.3 cm x 124.5 cm x 88.9 cm

CARB Compliant Not CARB Compliant

Caster Tires 11 in. x 4 in. (27.9 cm x 10.2 cm)

Controls Dual Wrap Around Levers

Cup Holder Standard

Cutting Width 42 in. / 107 cm

Deck Design 42″ Stamped Deck

Deck Material 13 Gauge Steel

Discharge Chute Side

Drive Tires 18 in. x 7.5 in. (45.7 cm x 19 cm)

Drive Type Rear-Wheel Drive

Engine 22 hp Briggs & Stratton

Engine Brand Briggs and Stratton

Engine Horsepower 22.0 hp

Foot Operated Height of Cut Optional

Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph

Fuel Capacity 3 gal. / 11.4 L / 12 Qt.

Fuel Type Gasoline

Height of Cut 1.5 – 4.5 in. / 3.8 – 11.4 cm

Hitch Bracket Standard

Hour Meter Optional

Included in the Box 1 Battery, Engine Oil

Number of Blades 2

Product Features Cup Holder, Electric Start, Foot Operated Height of Cut, Hitch Bracket, Low Back Seat, Smart Speed, Tool-less Oil Change

Product Use Residential

Recommended Oil Type 10W-30

Seat 16″ Handcrafted

Start Type Electric

Steering Controls Dual Wrap Around Levers

Steering Dampeners Pro-Control Dampers

Terrain Type Flat with Obstacles

Tires 11 in. x 4 in. (27.9 cm x 10.2 cm) Front, 18 in. x 7.5 in. (45.7 cm x 19 cm) Rear

Tow Speed Up to 4.0 mph / 6.4 kph

Transmission Dual Hydrostatic HG-ZT2100

Trim Speed Up to 5.5 mph / 8.8 kph

Washout Port Standard

Wheel Height Front 8 in. / 20.3 cm; Rear 10 in. / 25.4 cm

Yard Size Up to 2 acres

Attachments and Accessories (Not Included)
For 75748 TimeCutter 4225 Riding Mower

Product Name Model/Part

Twin Bagger, Timecutter 42in Stamped 79410

42in Recycler Kit 137-7042

Bagging Enhancement Kit 137-7048

Striping Kit, 42in and Riding Mowers 140-5198

Hourmeter Kit 116-5461

Front Weight Kit 140-2050

Assist Bar Kit 140-2052

ROPS Kit 79485

Slope Sensor Kit 79486

LED Light Kit 140-2056

Deluxe Seat Kit 140-2057

Armrest Kit 140-2058

Deck Footlift Assist Kit 140-2059

Floormat Kit 140-2060

Jack Mount Kit 140-2711

Jack Kit 127-6666

Replacement Blade Kit 137-1999-03P

Storage Cover 490-7516

Seat Cover W/O Arm Rest – TC 18in 117-0096

4-Cycle Fuel, Snow And Lawn 32oz Can 131-3823

Heavy Duty Air Cleaner Kit 135-6195

Fuel Stabilizer 05 oz 130-2393

Toro Premium Fuel Treatment 12 Oz Bottle 131-6572

10w30 4-Cycle Engine Oil (32oz Bottle) 38280

Toro 4-Cycle SAE 30 Oil (32oz Bottle) 38903

Mower Deck Drive Belt, TimeCutter SS Riding Mower with 42-inch Mowing Deck
