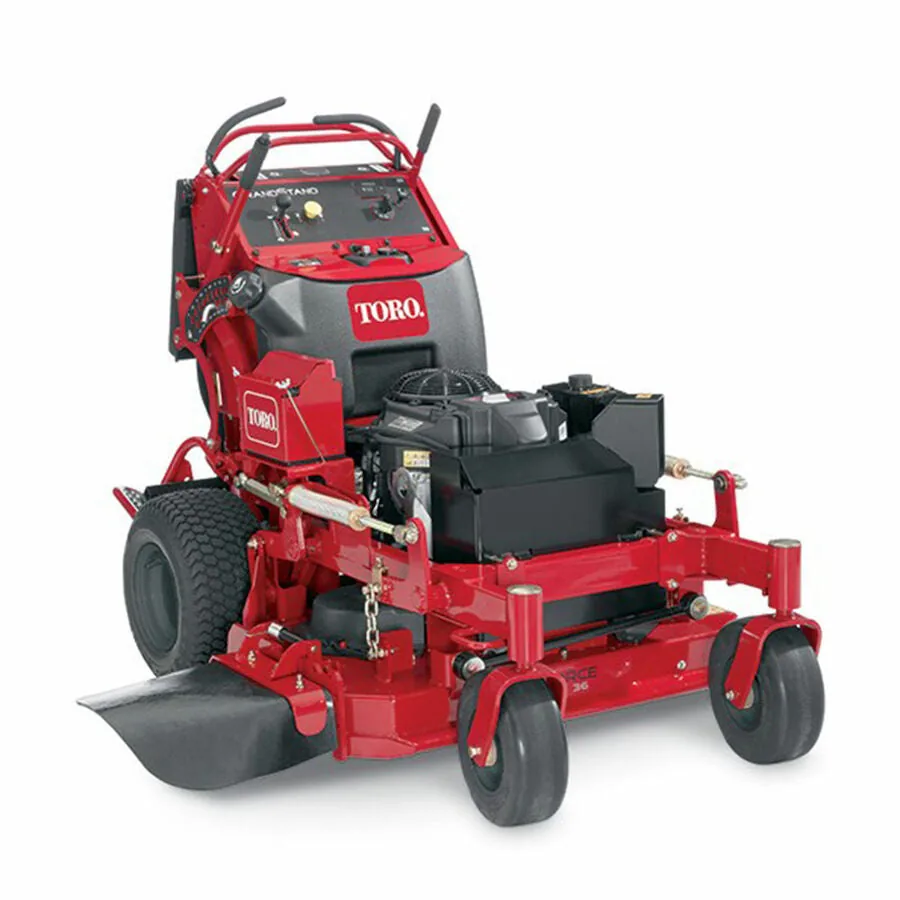

Toro GrandStand 74534 15hp Kawasaki FS Engine 36″ FAB Deck Mower

- Foldable operator platform instantly converts the machine to a walk-behind.
- Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
- With hefty cast iron spindles including maintenance free bearings plus only annual grease points, there will be less need for routine maintenance. That means less time spent off your mower and more time generating profits with it.
- Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Adjustable Discharge Baffle Standard

Blade Tip Speed 18,500 ft/min / 5,638 m/min

Blades 0.204 in. (0.5 cm) heat-treated steel

Box Dimensions 77.25 in. x 49 in. x 52 in. x 196.2 cm x 124.5 cm x 132.1 cm

CARB Compliant Not CARB Compliant

Carrier Frame 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)

Caster Tires 11 in. x 4 in. – 5 in. (28 cm x 10.2 cm – 12.7 cm) Flat-Free Semi-Pneumatic

Clutch Electromagnetic

Comfort Platform Foldable Operator Platform with Suspension

Controls Twin lever

Deck Design 7-gauge 36″ (91 cm) TURBO FORCE® with bull-nose bumper

Deck Material 7 Gauge Steel

Deck Size 36 in / 91 cm

Discharge Chute Rubber

Drive System Pumps 10cc rev Wheel Motors 10 cir

Drive Tires 18 in. x 8.5 in. – 8 in. (46 cm x 22 cm – 20 cm)

Engine 15 hp* (11kW) Kawasaki® FS541V 603 cc

Engine Brand Kawasaki

Engine Displacement (cc) 603 cc

Engine Horsepower 15.0 hp

Forward Ground/Transport Speed Up to 8.0 mph / 12.8 kph

Front Bumper Reinforced Bull-Nose

Fuel Capacity 7.8 gal. / 29.5 L / 31.2 Qt.

Fuel Type Gasoline

Height of Cut 1.0 – 5.0 in. / 2.5 – 12.7 cm

Hour Meter Standard

Hydraulic Fluid Premium synthetic

Number of Blades 3

Product Type Stand-On Mowers

Product Use Commercial

Spindle Bearings Maintenance-free

Spindle Housing 9.375 in / 23.8 cm Diameter Cast Iron

Start Type Electric

Steering Controls Twin Lever

Weight 837 lbs / 379.7 kg

Disclaimer

*The gross horsepower of these engines was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAEJ2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.

Accessory List (Not Included)

Model/Part # Description

110-2080 Recycler Mulch Kit
