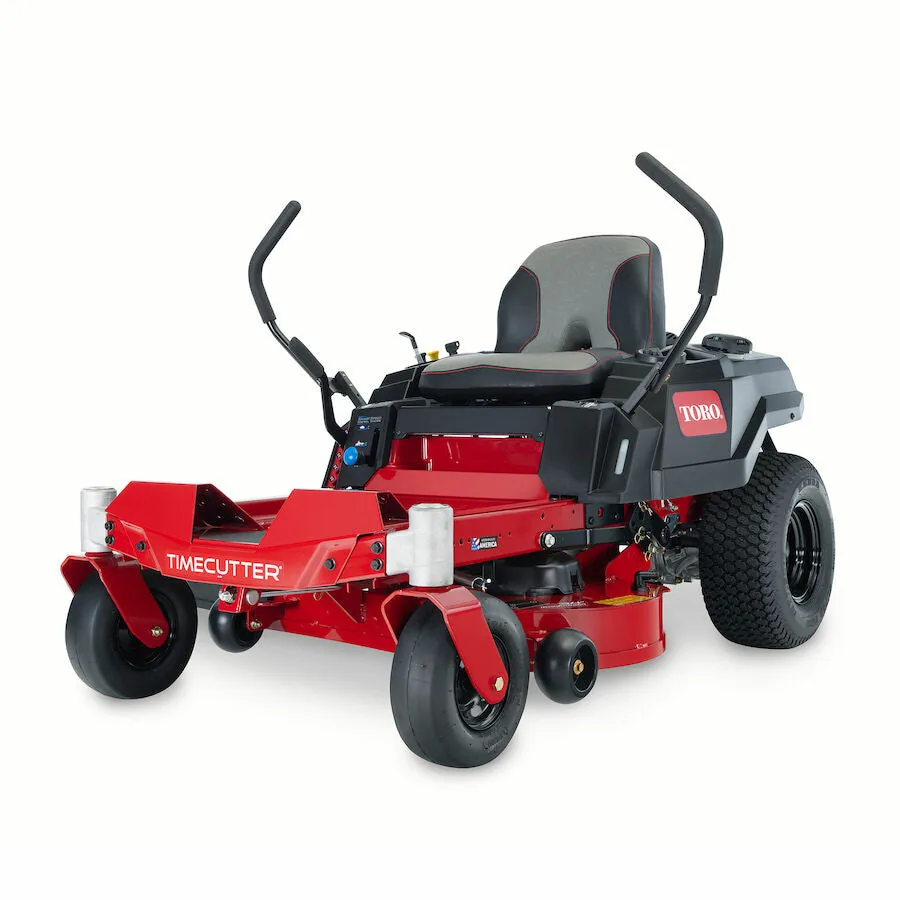

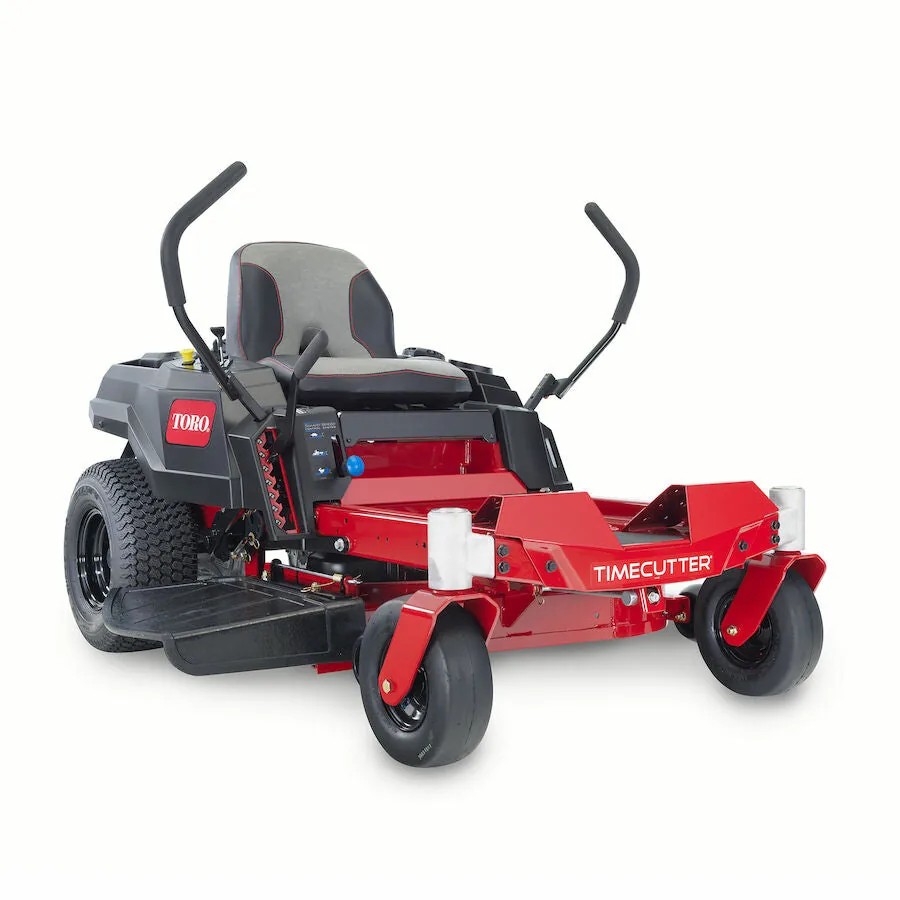

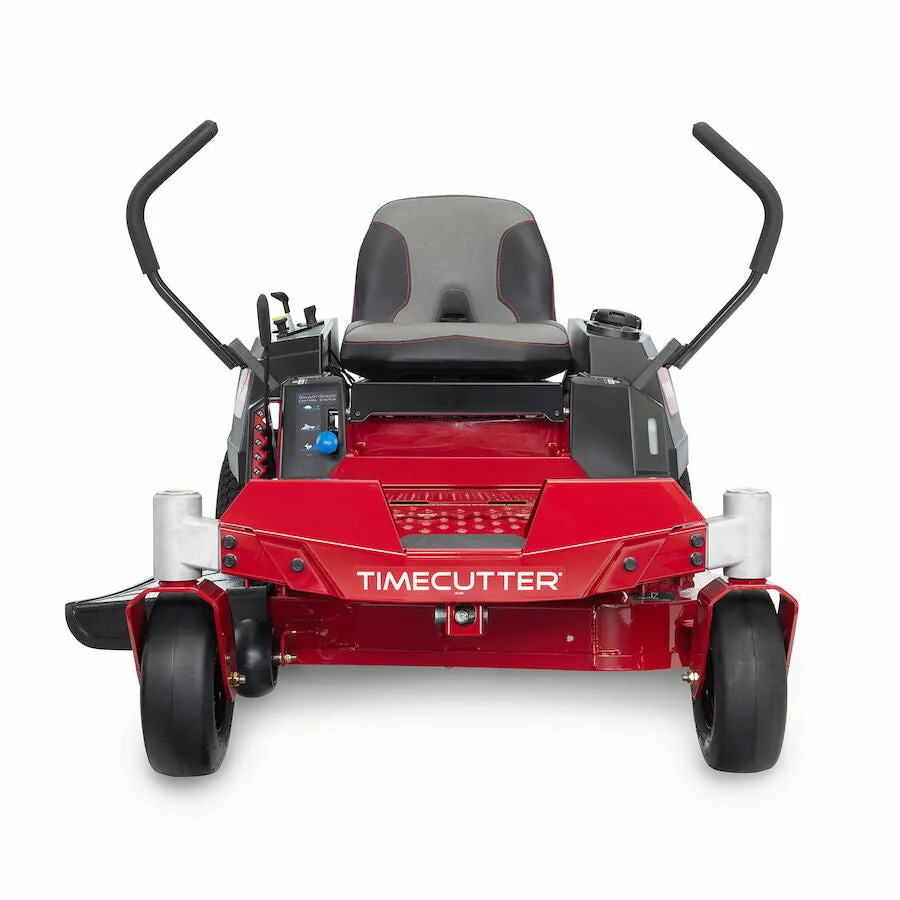

Toro Timecutter 22hp 724cc Briggs & Stratton Engine 34″ FAB Deck Z-Turn Mower #77301

34 in. (86 cm) TimeCutter® Zero Turn Mower

- Built to tackle big jobs while fitting in small spaces.
- Built Like a Bull – IronForged® high strength grade 50, 10-gauge steel deck with bull nose reinforced leading edge.
- Take control over your mowing speed, while never sacrificing blade tip speed.
- Step-Through Front End – Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
- Storage Cubby – Now there’s a convenient and safe space in your under-seat cubby to store important items.
- Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
- Commercial DNA courses through these machines’ veins with the same technology pros depend on.
- Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more

The ultimate zero-turn mower for tackling big lawn jobs while also fitting in small spaces. This small but mighty TimeCutter with powerful 22 HP* V-Twin Briggs & Stratton engine and 34″ IronForged® deck allows you to create both a beautiful lawn and have more time than ever to enjoy it. The mower’s compact design makes for easy storage. Toro stands behind its mowers with a 3-year, 300-hour commercial engine limited warranty.† And as a Toro owner you’ll have access to more than 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Specifications

Air Filter Standard Briggs & Stratton Air Cleaner

Anti Scalp Wheels 2 Standard

Armrests Optional

Bagger Capacity 4.9 bushels

Blade Design 0.164 in. / 0.417 cm Steel with Blade Stiffner

Blade Tip Speed 18,179 ft/min / 5,541 m/min

CARB Compliant Not CARB Compliant

Caster Tires 11 in. x 4 in. – 5 in. Pneumatic

Clutch Electromagnetic

Cooling System Air Cooled

Crankshaft 1″ (25 mm) w/Steel Protector

Cup Holder Standard

Cutter System Steel Cutting Blade

Cutting Width 34 in / 86 cm

Deck Design 10-Gauge steel IrongForged®

Deck Material 10 Gauge Steel

Discharge Chute Side

Drive System HYDRO

Drive Tires 18 in. x 6 in. – 8 in. (45.7 cm x 15.2 cm – 20.3 cm)

Drive Type Rear-Wheel Drive

Engine 22 hp Briggs and Stratton EXI 724cc

Engine Brand Briggs and Stratton

Engine Displacement (cc) 724 cc

Engine Horsepower 22.0 hp

Engine Power (kW) 16.4 kW

Foot Operated Height of Cut Optional

Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph

Forward Mowing Speed Up to 7.0 mph / 11.2 kph

Fuel Capacity 3 gal. / 11.4 L / 12 Qt.

Fuel Type Gasoline

Greasable Bearings Yes

Height of Cut 1.5 – 4.5 in. / 3.8 – 11.4 cm

Hitch Bracket Standard

Hour Meter Optional

Hydraulic Dampeners Yes, Non-Cavitating

Hydraulic Drive Standard

Number of Blades 2

Product Type TimeCutter

Product Use Residential

Recommended Oil Type 10W-30

Roll-Over Protection (ROPS) Optional

Seat 16″ Handcrafted

Spindle Bearings Maintenance-free

Spindle Housing Cast-Aluminum

Start Type Electric

Steering Controls Dual Wrap Around Levers

Steering Dampeners Standard Dampers

Terrain Type Flat with Obstacles

Tow Capacity Combined machine, user, towed weight may not exceed 1,000 lbs.

Transmission Dual Hydrostatic HG-EZT2100

Washout Port Standard

Model/Part # Description

140-3536 Recycler Mulch Kit

79417 TIMECUTTER Non-Powered Bagger
