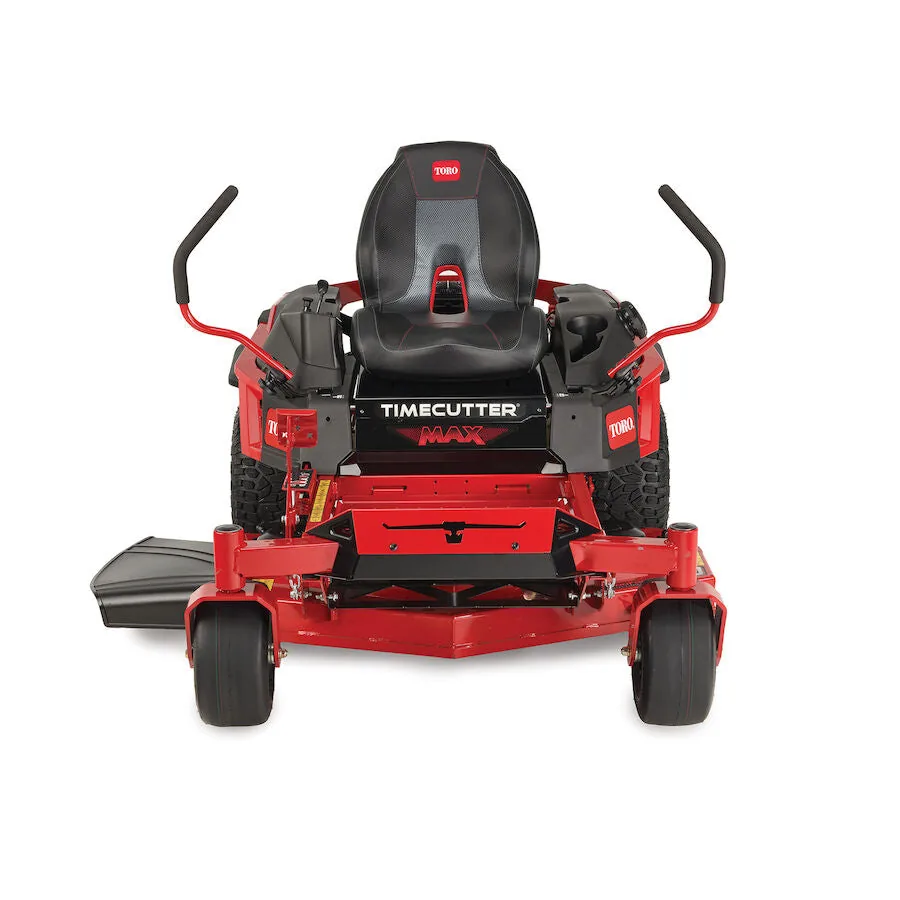

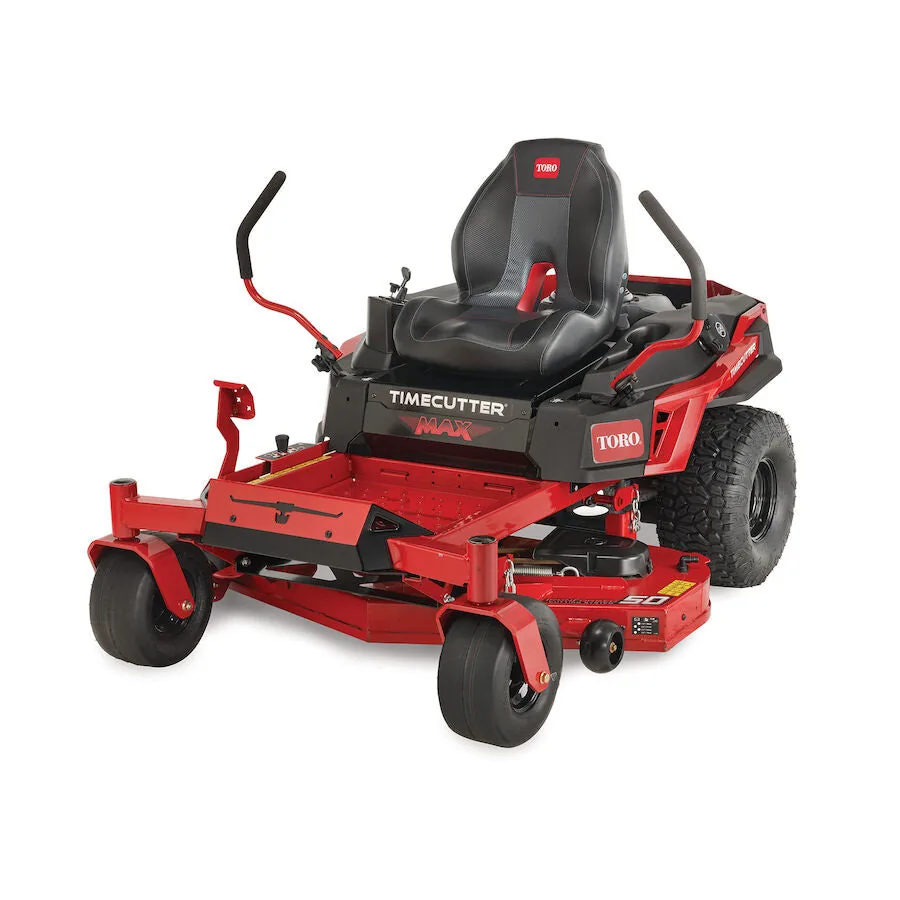

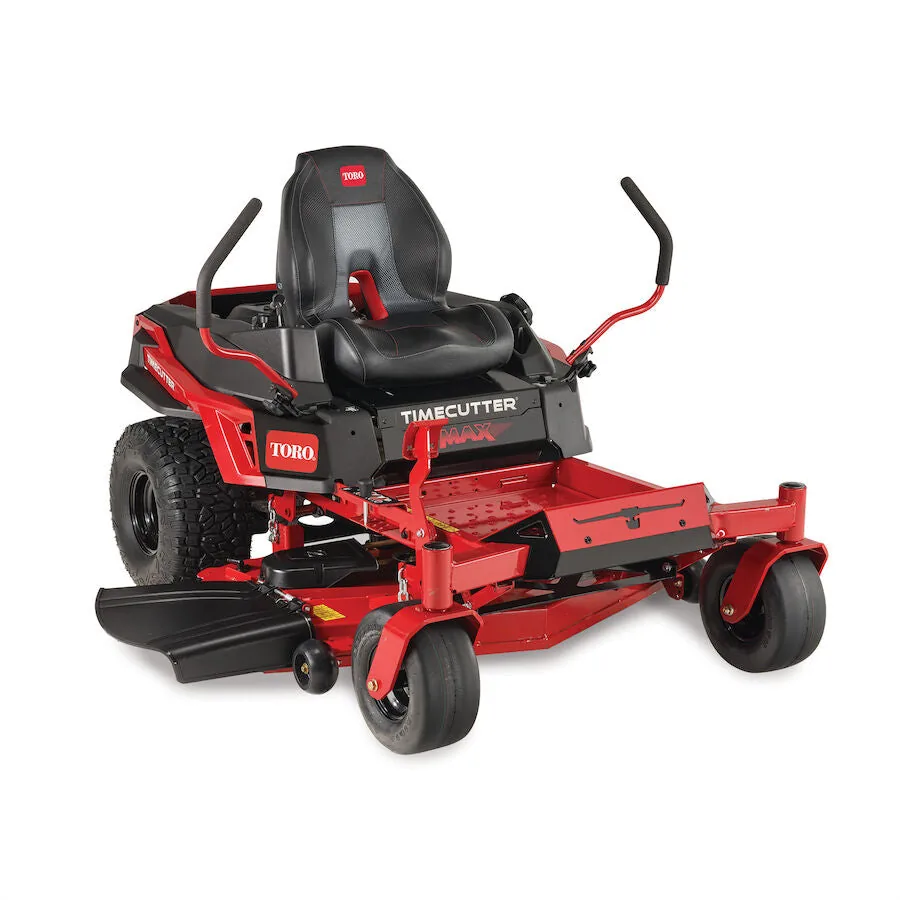

Toro Timecutter MAX 23hp Kawasaki Engine 50″ FAB Deck Z-Turn Mower #77501

- Over 100 years of Pro DNA course through the veins of every mower we build.
- Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way.
- The gaming-style seat gives you big time support exactly where you need it.
- The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
- Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
- Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more
- The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
- Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
- The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
- The extra-large, built-in drink holder keeps your beverage handy so you can keep powering through.

Specifications

Air Filter Standard Kawasaki Air Cleaner

Anti Scalp Wheels 3 Standard

Armrests Optional

Bagger Capacity 4.9 bushels

Blade Tip Speed 17,600 ft/min / 5,364 m/min

Box Dimensions 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm

CARB Compliant Not CARB Compliant

Carrier Frame 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel

Caster Tires 12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic

Clutch Electromagnetic

Comfort Platform Standard Suspension

Cooling System Air Cooled

Crankshaft 1″ (25 mm) w/Steel Protector

Cup Holder Standard

Cutter System Steel Cutting Blade

Deck Design 10-Gauge steel IrongForged®

Deck Material 10 Gauge Steel

Deck Size 50 in / 127 cm

Discharge Chute Side

Drive System HYDRO

Drive Tires 20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm)

Drive Type Rear-Wheel Drive

Engine 23 hp Kawasaki FR691V 726cc

Engine Brand Kawasaki

Engine Displacement (cc) 726 cc

Engine Horsepower 23.0 hp

Engine Power (kW) 17.2 kW

Foot Operated Height of Cut Standard

Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph

Forward Mowing Speed Up to 7.0 mph / 11.2 kph

Frame 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing

Fuel Capacity 5 gal. / 18.9 L / 20 Qt.

Fuel Type Gasoline

Greasable Bearings Yes

Height of Cut 1.5 – 5.0 in. / 3.8 – 12.7 cm

Hitch Bracket Standard

Hour Meter Optional

Hydraulic Drive Standard

Lighting Optional

Number of Blades 3

Product Type TimeCutter Max

Product Use Residential

Recommended Oil Type 10W-30

Roll-Over Protection System (ROPS) Optional

Seat 19″ Gaming Style

Spindle Bearings Maintenance-free

Spindle Housing Cast-Aluminum

Start Type Electric

Steering Controls Twin Lever

Steering Dampeners Standard Dampers

Terrain Type Flat with Obstacles

Tires 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear

Tow Capacity Combined machine, user, towed weight may not exceed 1,000 lbs.

Transmission Dual Hydrostatic HG-EZT2200

Washout Port Standard

Weight 644 lbs / 292.1 kg

Disclaimer

*23 HP gross (726 cc) at 3,300 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
†See retailer for complete warranty details.
‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.

Accessory List (Not Included)

Model/Part # Description

139-3240 Recycler Mulch Kit

79501 TIMECUTTER Non-Powered Bagger
