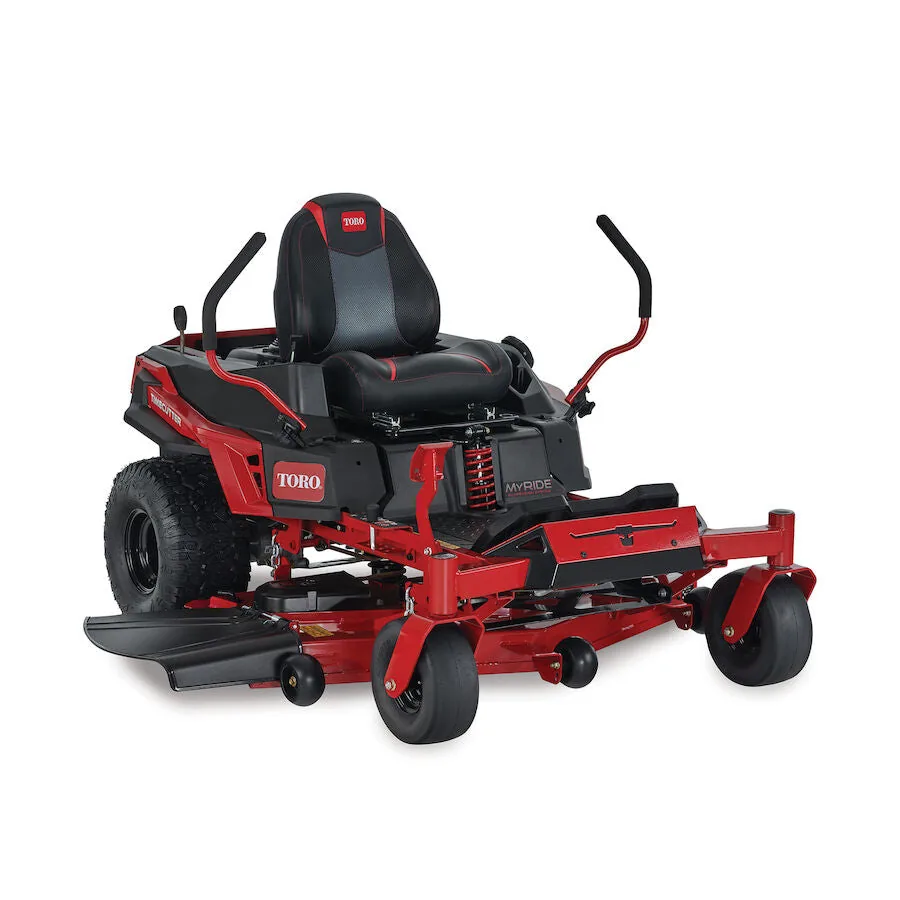

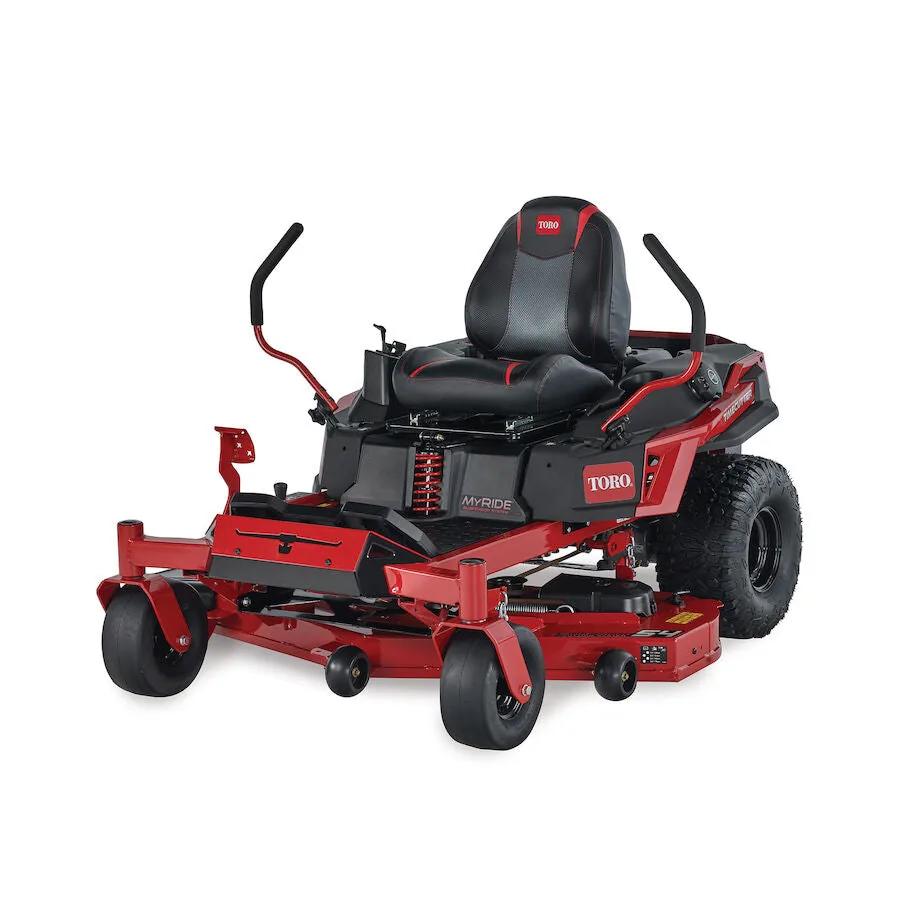

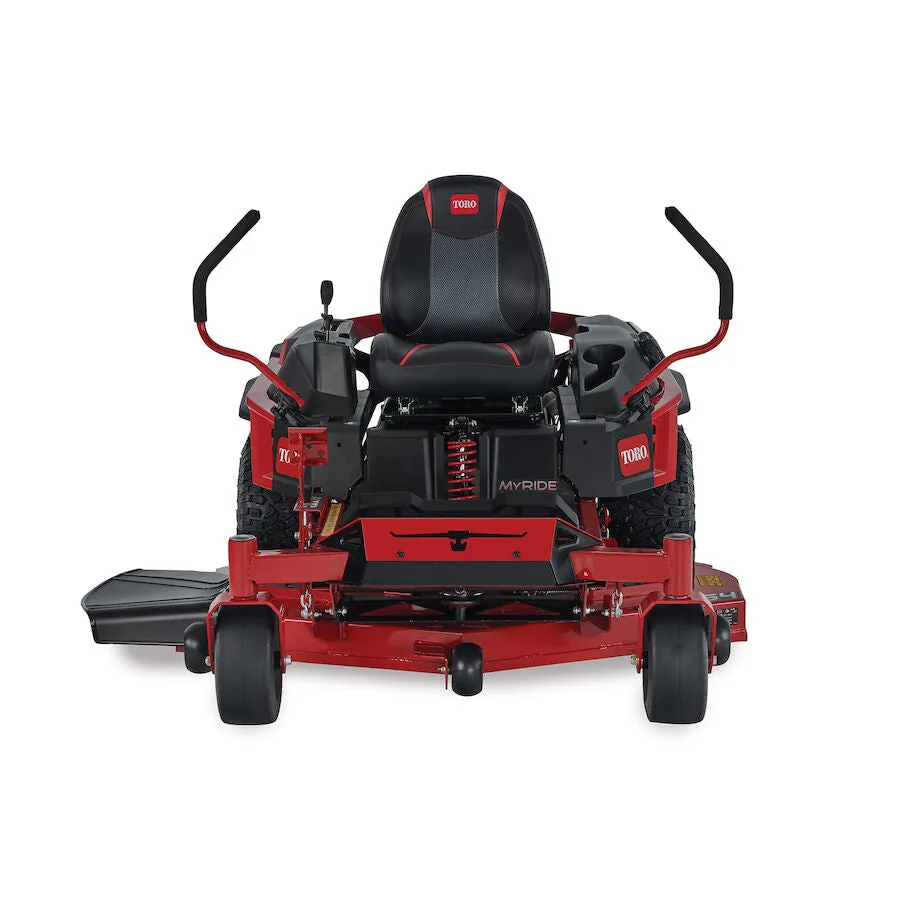

Toro Timecutter Max 23hp Kawasaki Engine 54″ FAB Deck Z-Turn Mower w/ MYRIDE #77503

54 in. (137 cm) TimeCutter® Max MyRide® Zero Turn Mower

Featuring MyRIDE® Suspension System

- Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
- Over 100 years of Pro DNA course through the veins of every mower we build.
- Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way.
- The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
- Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
- Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
- Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
- The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.

Specifications

Air Filter Standard Kawasaki Air Cleaner

Anti Scalp Wheels 3 Standard

Armrests Optional (Not Included)

Bagger Capacity 79503 4.9 bushels (Not Included)

Blade Tip Speed 17,700 ft/min / 5,395 m/min

Box Dimensions 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm

CARB Compliant Not CARB Compliant

Carrier Frame 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel

Caster Tires 12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic

Clutch Electromagnetic

Comfort Platform MyRIDE® Suspension System

Cooling System Air Cooled

Crankshaft 1″ (25 mm) w/Steel Protector

Cup Holder Standard

Cutter System Steel Cutting Blade

Deck Design 10-Gauge steel IrongForged®

Deck Material 10 Gauge Steel

Deck Size 54 in / 137 cm

Discharge Chute Side

Drive System Hydrostatic

Drive Tires 20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm)

Drive Type Rear-Wheel Drive

Engine 23 hp Kawasaki FR691V 726cc

Engine Brand Kawasaki

Engine Displacement (cc) 726 cc

Engine Horsepower 23.0 hp

Engine Power (kW) 17.2 kW

Foot Operated Height of Cut Standard

Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph

Forward Mowing Speed Up to 7.0 mph / 11.2 kph

Frame 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing

Fuel Capacity 5 gal. / 18.9 L / 20 Qt.

Fuel Type Gasoline

Greasable Bearings Yes

Height of Cut 1.0 – 5.0 in. / 2.5 – 12.7 cm

Hitch Bracket Standard

Hour Meter Optional (Not Included)

Hydraulic Drive Standard

Lighting Optional (Not Included)

Number of Blades 3

Product Type TimeCutter Max MyRide

Product Use Residential

Recommended Oil Type 10W-30

Roll-Over Protection (ROPS) Optional (Not Included)

Seat 19″ Gaming Style

Spindle Bearings Maintenance-free

Spindle Housing Cast-Aluminum

Start Type Electric

Steering Controls Twin Lever

Steering Dampeners Standard Dampers

Terrain Type Flat with Obstacles

Tires 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear

Transmission Dual Hydrostatic HG-EZT2200

Washout Port Standard

Weight 684 lbs / 310.3 kg

.
